The Cuillin Bed System: Your Perfect Camper Van Setup

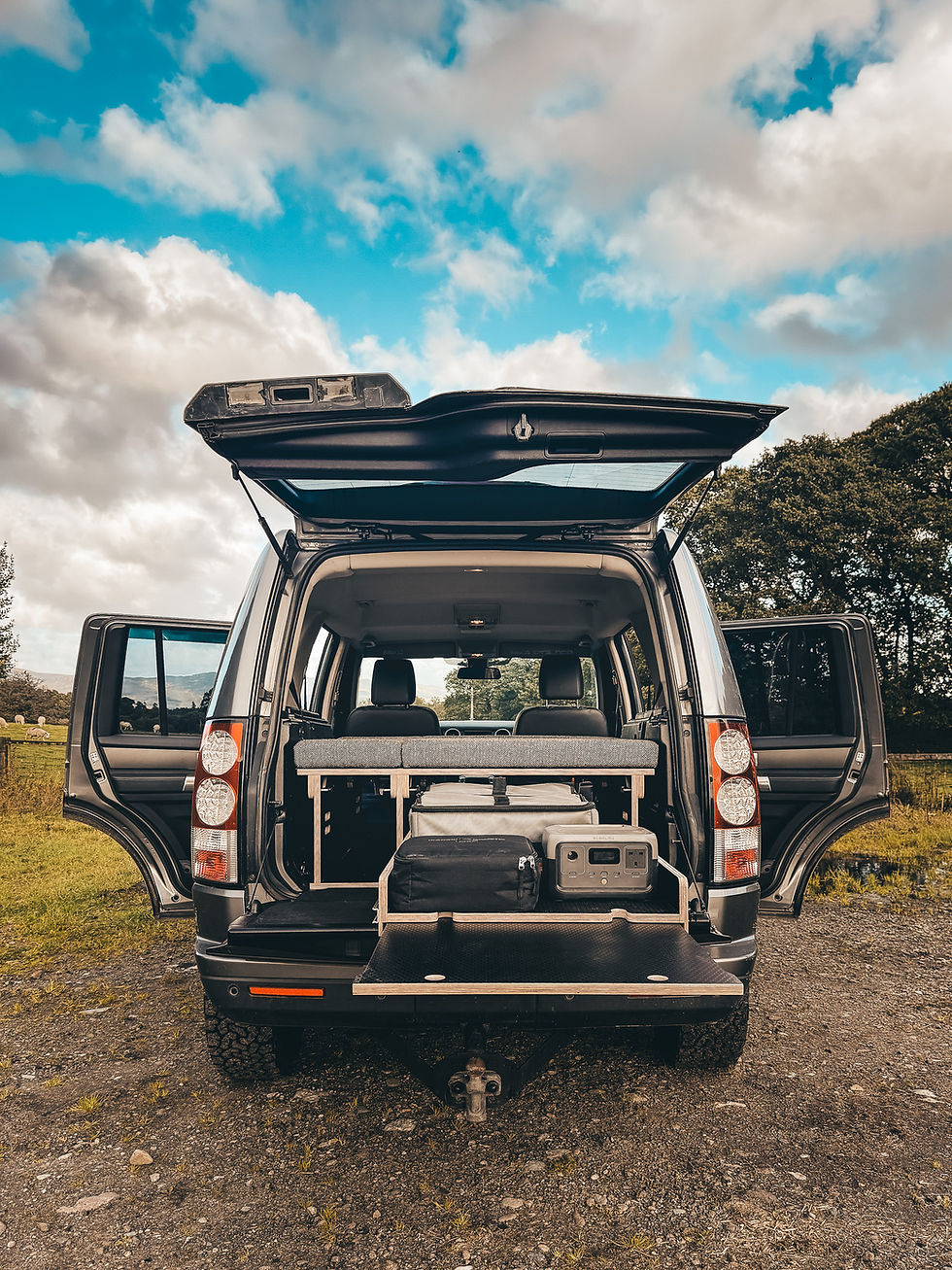

The Cuillin SW Defender offers a complete plug-and-play bed and storage solution. It can work with 2 or 3 of the middle row of seats fitted and offers a massive bed setup a unique lounging mode. Easily fitted and removed and secured to the factory d-rings, the Cuillin has you covered for day-to-day Defender duties all the way through to full expeditions.



Our upholstery works with the functions of the bed system



There are two options to choose from:



Explorer Series:

Bed and seating system with storage underneath



Adventurer Series:

Bed and seating system with a heavy-duty pull-out storage tray on 200kg rated runners



Key Features:

  • Full-width bed option
  • Bed with a lounging backrest (forward or rear-facing)
  • Easy to lift in/out
  • Secures to existing d-rings with straps (supplied)
  • Can work with 2 or 3 rear seats fitted
  • Adventurer Series: Heavy-duty, tray system which can be used for equipment and / or pull out cook station



Compatible Vehicles:

Land Rover Defender Station Wagon Classic 2007 – 2016

If you have the rear most seats these must be removed.



How to Order Your Cuillin Defender:

  • Pick Your Style: Explorer (bed and seat system with open storage below) or Adventurer (bed and seat system with slide-out storage tray)
  • Add your upholstery
  • Then decide if you want: Collection / Install or Shipping



If you're unsure about anything just reach out! We double-check all orders before production and will contact you to confirm compatibility.

Cuillin Defender

PriceFrom £600.00
Upholstery Option
Quantity
  • Manufactured from 18mm phenolic coated Black Hexa birch ply

    Secured in place using 4no. 25mm straps with anti-rattle buckles



    Explorer

    Length behind seats: 1000mm

    Length extended: 1800mm

    Height: 418mm to top of top plates, clearance under system without tray 330mm

    Width: 1200mm width of top plates, 710mm in between frame uprights

    Weight: approx 40kgs



    Adventurer:

    Length behind seats: 1000mm

    Length extended: 1800mm

    Height: 418mm to top of top plates, clearance under system without tray 300mm

    Width: 1200mm width of top plates, 710mm in between frame uprights, 645mm internal tray width

    Drawer Length: 988mm

    Drawer Width: 645mm

    Clearance height on tray: 300mm

    Runner specification: 200kg load rated runners, single locking handle

    Weight: 70kgs approx

  • The Cuillin Defender is available with standard grey upholstery fabric or you can choose from our Harris Tweed colour range

    https://www.theplyguys.co.uk/campervan-upholstery

    75mm marine grade foam. Zipped covers to all sections. Held in place using velcro
