torridon, clachan storadh, bruich biadh
caddy maxi OPTION 1
Our ultimate caddy maxi setup! This configuration features a full-width bed plus rear and side slide out storage options
​
prices from
£2320
bed & storage
Our Torridon, Clachan Storadh and Bruich Biadh setup is our ultimate Caddy Maxi configuration! It covers all bases with massive amounts of storage, twin pull out drawers and a super handy side wheel arch unit for all your small bits and dry goods.
The Torridon unit creates a wide bed setup making the most of your available Caddy Maxi sleeping and living space. In the Caddy Maxi the Torridon usually lives on the driver side at a standard length of 1700mm and height of 366mm, this is essentialy your main bed unit which pulls out sideways into the van from sofa to bed mode. Technically it can live alone in the van as a single bed but adding the Clachan Storadh (SWB Caddy version coming soon) and Bruich Biadh allows for extra storage options.
key torridon info
-
​1700mm(l) x 366mm(h) x 665mm(w)
-
Extends to 1165mm wide in bed mode
-
1400mm long rear extending storage drawer with optional cook or storage setup
​
ALTERNATIVE OPTIONS
-
​Schiehallion - Paired back option without the slide out storage drawer, good for those looking for ample storage space at a lower price
The Clachan Storadh unit covers the wheel arch on the passenger side of your Caddy Maxi and has a high level worktop and a low level section too. This low level section sneaks in storage underneath while maintaining open space above, making it pretty handy for the old jacket/bag hanging. Keeping this section lower down maintains the all important air space which is a must in smaller van conversions. If you build units that are too big well it becomes a very small space and you lose all those lovely van attributes.

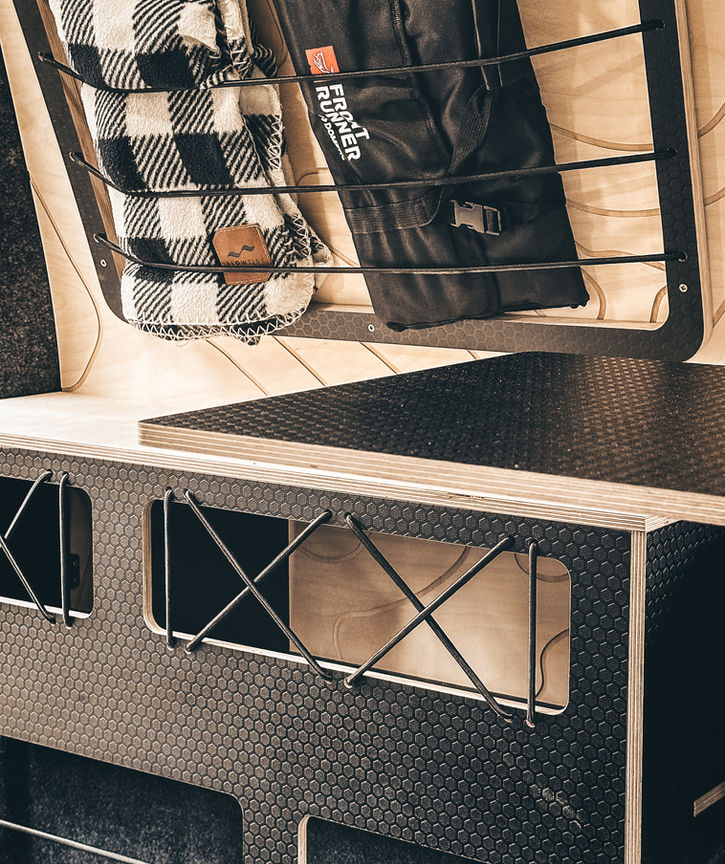

The rear section of the unit is at a higher level, 600mm to create a multi level storage dooket system below. Stylised with our ever popular bungee there are two top sections which are still accessable when the Torridon or Schiehallion bed system is in full bed mode. Perfect for stashing your phone or making a cheeky brew on a JetBoil from the comfort of your bed. Below this is a large open storage section into the wheel arch. We don't box anything off here as we're maximising all the nooks and crannies a Caddy has.
Strikingly contrasted with our Black Hexa birch plywood and natural worktops (both low and high level). This also helps to create the illusion of space and lightness in your van. Keeping dark colours low and lighter highlights to the top, brightening the environment.
​
key clachan STORADH info
-
​1300mm long, 600mm high (tall section), 290mm high (low section), 240mm deep (into van from wall). The tall section is 820mm long and the low section is 480mm long (1300mm total)
-
Manufactured from high quality black hexa birch plywood and natural birch plywood, with Marlow Bungee.​​​
​​



kitchen pod
in a Caddy Maxi your bed system will take up 1700mm on the driver side leaving you plenty of space to add a Bruich Biadh (360mm wide small van version). This is a great setup that gives you a full length bed and both rear and side pull out drawers.
​
Depending on how you use your van the Bruich Biadh comes in a low level version (ideal for extending the bed length) or with a raised worktop area (great for housing a stove and making a brew in the morning).
​
When it comes to the storage drawer options theres a cook station version with a tiered shelf setup or a full length storage option with lids and removable separaters. We would recommend the storage version as you can still cook on top of the lids getting the best of both options.
​​​​
key bruich biadh info
-
Two options, low level or raised kitchen worktop
-
​1400mm (l) x 360mm (d) x 366mm high (low level height) or 540mm (worktop height, this only affects half the unit)
-
Internal access to bottom storage drawer.​
-
Coose between a cook or storage drawer, the cook version having a tiered shelf.
​​
