Torridon: Unequel split sliding bed with extending storage / cook station

Torridon: Unequel split sliding bed with extending storage / cook station

PriceFrom £1,050.00

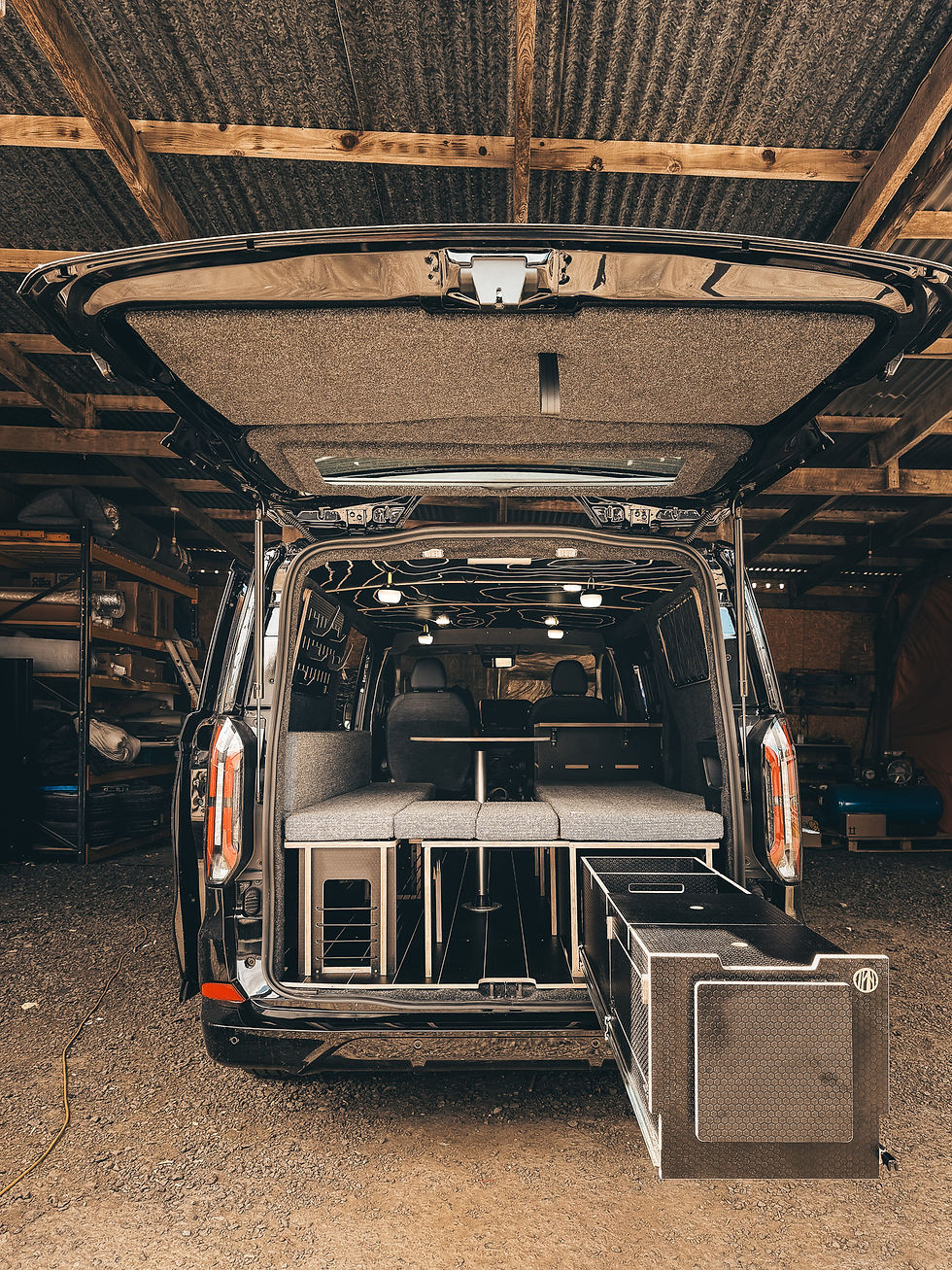

Our Torridon bed system has an updated design incorporating a huge extending rear cook station drawer (1.4 meters) to create a variety of storage and workspace options for prep, cooking or just alfresco table space! We can also swap this out for a storage box similar to our Assynt design, just let us know in the text box provided.



The standard unit is designed around the wheel arch of most medium & large vans and has a neat cut-out to clear the rear light cluster so the bed can get as close to your rear door as possible.



We also have a version of the Torridon for smaller vans such as the VW Caddy SWB at 1700mm long x 366mm (high), please use the Small Van option in the drop-down box to select this version. This doesn't reduce the length of the large pull-out drawer but makes the cupboard at the other end 100mm smaller. A superb bed and cook station for the micro camper!





Medium Van and Large Van are all Standard Height 400mm high x 1800mm long. Designed for LWB or SWB vans (standard panel van) this option also fits in a LWB Kombi / Crew Cab behind the first row of seats. This works perfectly in conjunction with our Clachan side unit to create a full width sleeping platform, whilst maintaining a large through load space.



SWB Kombi (please note different overall dimensions) - 540mm x 1400mm. Designed specifically around a SWB Transporter Kombi but also works with other Crew Cab vans (height differences apply). The SWB Kombi option is 540mm high and only 1400mm long fitting between the rear seats and the rear door. This then works in conjunction with the folded seats and pull out section of the Torridon to form a bed. You can also use it in conjunction with our SWB Kombi Clachan side unit to create a full width sleeping platform, whilst maintaining a large through load space.

Colour / Finish
Upholstery
  • Tech Specs

    STANDARD UNIT 'MED/LARGE VAN' DIMENSIONS

    1800mm (L) x 665mm (W) in seat mode and extends to 1165mm (W) in bed mode.

    It is possible to create an L-shaped sofa by extending the rear section

    Internal dimensions of the large drawer are 1370mm (L) x 337mm (W) x 285mm (D) which also contains three removable, equally spaced separators.

    The front cupboard is 405mm deep, 345mm wide and 370mm deep.



    TORRIDON 'SMALL VAN' DIMENSIONS

    Overall height: 366mm high

    Arch clearance required: 348mm

    Length 1700mm

    Depth 665mm

    Extension 500mm

    Overall:  665mm + 500mm Total width in bed mode 1165mm

    L-shape small extension : 565mm long



    SWB KOMBI VERSION

    The SWB Kombi version is 1400mm(l) x 540mm(h) x 600mm(w). This is so the unit works with the folded rear seats of the van. It provides a higher seating platform but a massive bed for a SWB, plus an unbelievable amount of storage. As ever with vans you do slightly comprimise on head room when in seat mode but... your SWB Kombi will be the most functional one out there!



    Overall height: 540mm high

    Length 1400mm

    Depth 665mm

    Extension 500mm

    Overall:  665mm + 500mm Total width in bed mode 1165mm

    L-shape small extension : 565mm long

    Perfectly complimented with out SWB Kombi Clachan side unit on the adjacent side of your van.

  • Assembly

    Your Torridon unit will arrive fully assembled and ready to be placed straight into your van, no DIY skills or assembly needed.

  • Delivery

    We build each unit by hand to order and are currently operating on a 4 week lead time.

    Delivery is carried out by pre-booked in pallet shipment

    Collection is FREE (by appointment)

  • Collection

    Collection is free and encouraged, we love to meet our customers!
